7 METER
MILITARY SPEC. INBOARD POWER. PERFORMANCE.

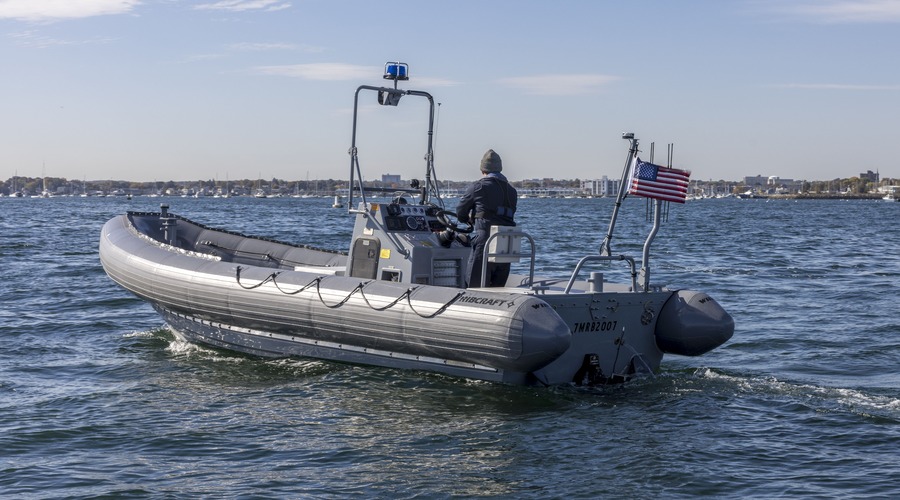

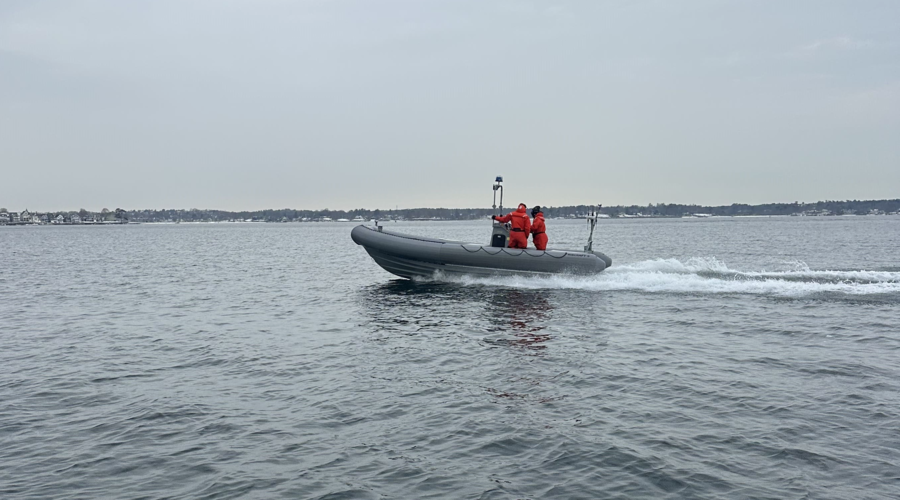

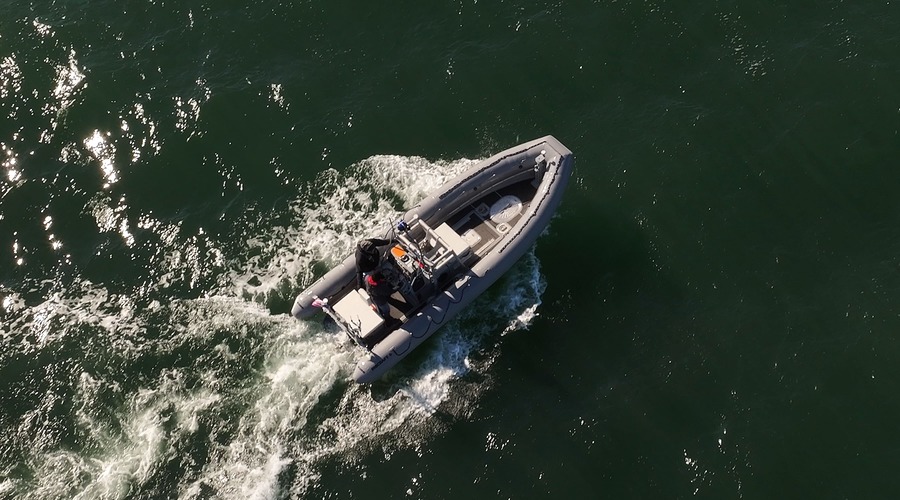

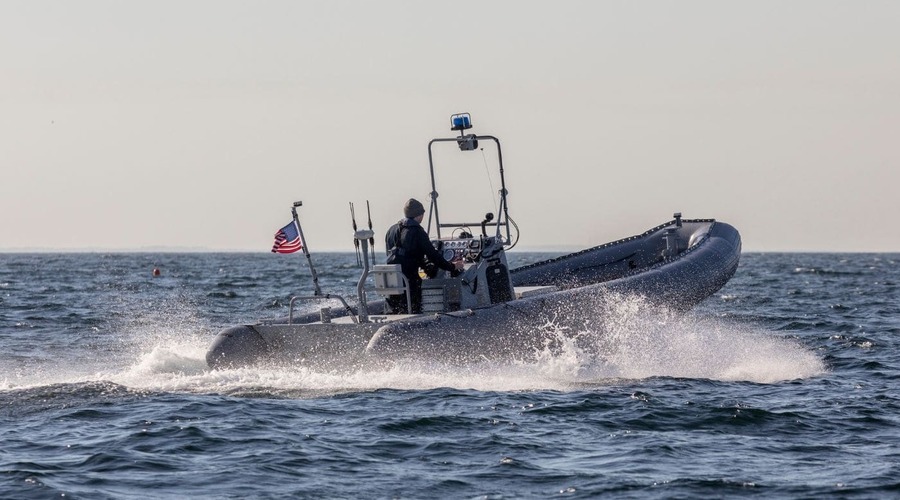

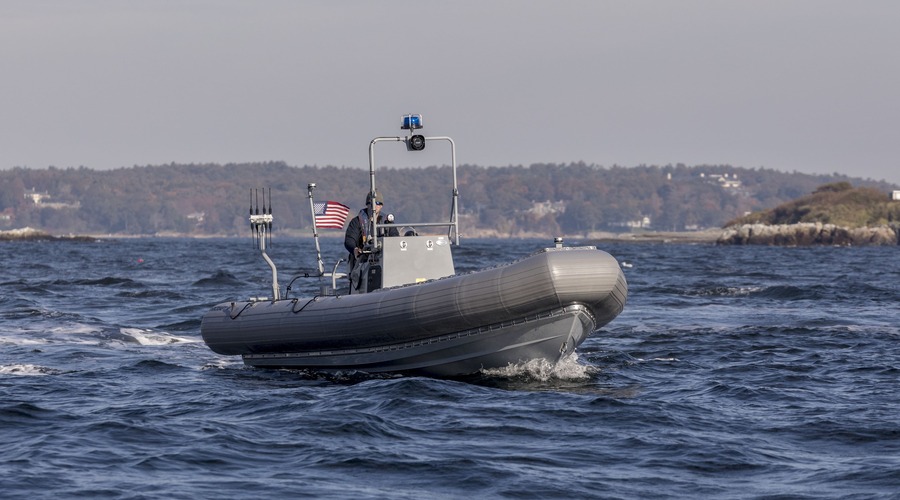

With a deep V fiberglass hull and offshore performance characteristics, the RIBCRAFT 7 Meter meets the emergent requirements of military and government agencies around the world. Designed specifically for shipboard operations, the RIBCRAFT 7 Meter with an I/O diesel engine is ideally suited for maritime interdiction, boarding parties, search and seizure operations, security patrols, and anti-terrorism force protection. Configured to provide the end user with the utmost in versatility, the 7 Meter is designed to meet shipboard stowage constraints. Built to exact military specifications, the RIBCRAFT 7 Meter is the US Navy standard 7M RIB, featuring an internal composite structure, high-capacity self-draining deck, and mechanically fastened Hypalon or polyurethane tube.
RIBCRAFT 7 Meter Specs
LOA: | 24’ |
Beam: | 9' |
Weight (w/out engine): | 2,550 lbs |
Dead Rise Aft: | 23º |
Dead Rise Forward: | 45º |
Tube Diameter: | 21” |
Internal Length on Deck: | 19’3” |
Internal Beam on Deck: | 5’2” |
Draft (w/out engine): | 15” |
Maximum HP: | 350 |
7 Meter Standard Equipment:
- Hinging center console with front bench seat and access hatches
- Coxswain bolster
- Passenger grab handle
- Aft storage locker
- Internal fuel tank
- Hydraulic steering with wheel
- Mechanically fastened Hypalon tube with 7 chambers
- Pressure relief valves
- Internal and external lifelines
- Heavy duty rubstrake
- Stainless steel bow eye
- Anchor locker
- Heavy duty transom tie down eyes
- Battery with retainer (2) and switch
- Electrical panel
- Navigation lights
- Compass
- Industrial grade non-skid self draining deck
- High capacity deck drains
- Electric bilge pumps
7 Meter Optional Equipment: (Partial List)
- Windshield with stainless steel grab rail
- Removable console arch
- Antenna arch
- Folding dive ladder
- Fore and aft tow posts
- Removable console arch
- T-top
- Light/antenna mast
- Integral hoisting fittings
- Aluminum transom cap with tow bollards
- Engine crash rail
- Stainless steel deck mounted tie downs
- Keel guard
- Polyurethane tube with seven (7) chambers
- Boarding wear patches
- Reinforced tube at bow
- Tube grab handles
- Paddle/hook retainers
- Custom lettering
- Strobe and safety lights
- Electronics packages
- Electrical system upgrade
- Complete engine packages
- PropGuard
- Various hull and tube colors
With accessory choices, console and seating configurations, propulsion options and a variety of navigation and communication equipment, the 7.0 can be personalized to the mission. All specifications, equipment, and options are subject to change without notice.
