11 METER

Military Spec. Multi Variant.

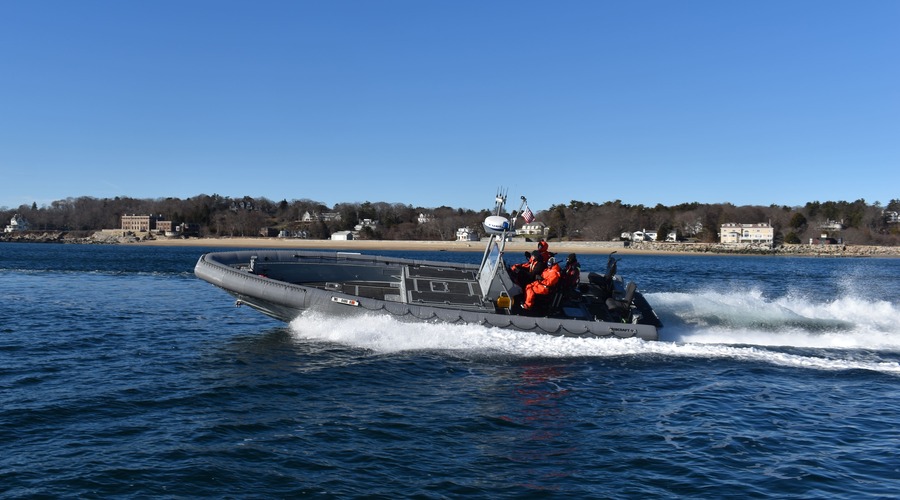

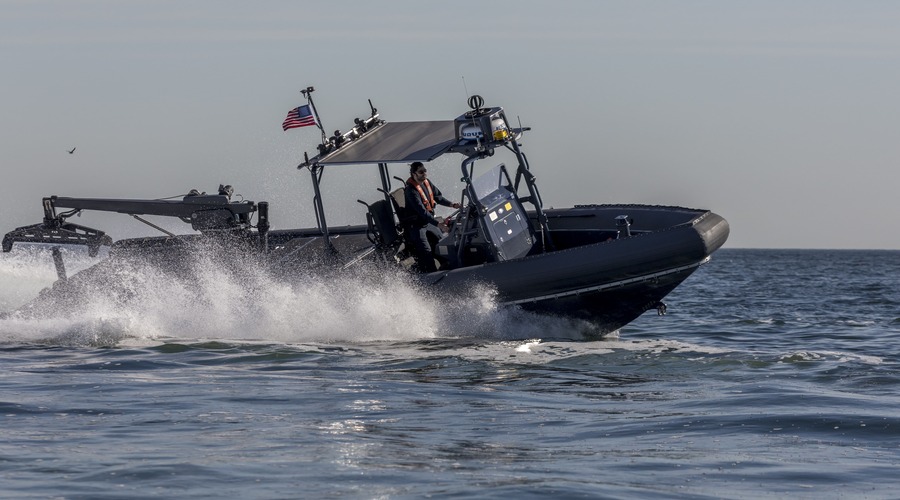

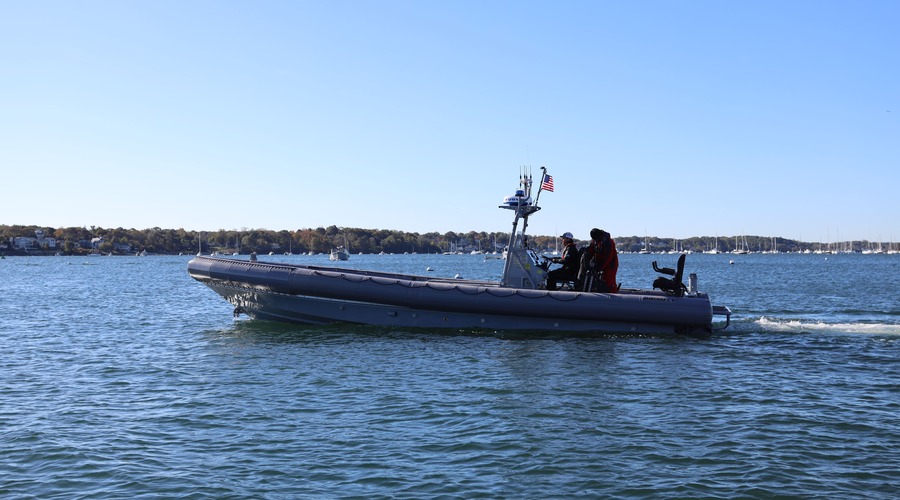

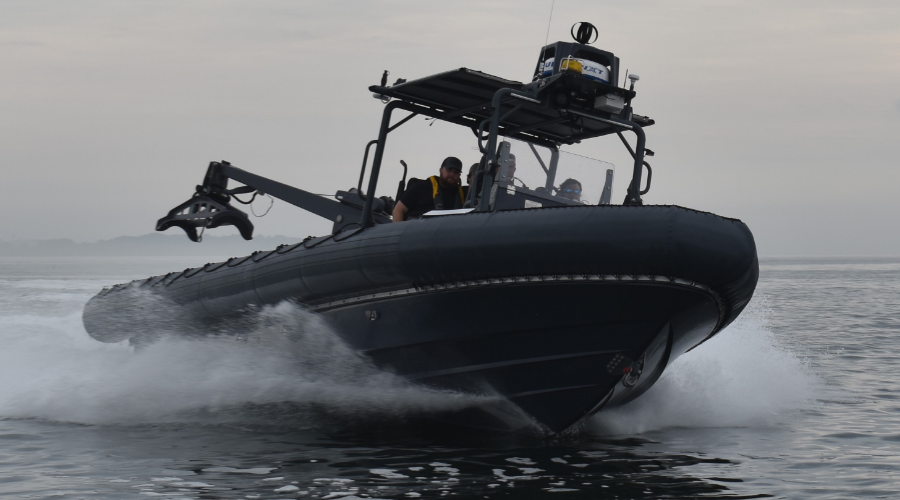

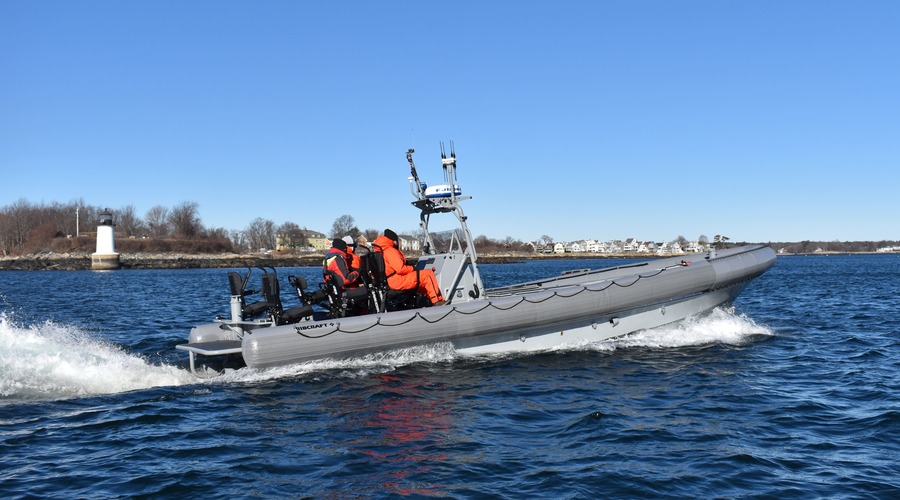

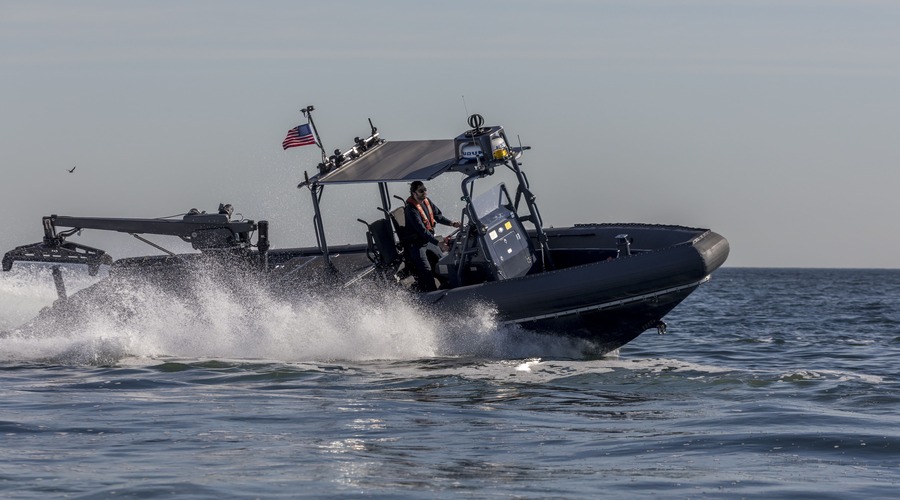

In collaboration with the United States Navy, RIBCRAFT builds the US Navy 11 Meter RIB. Featuring twin Cummins diesel engines with Hamilton jets, the RIBCRAFT USN 11 Meter RIB accommodates up to 26 passengers/crew. With configurations for open forward and aft decks, the 11 Meter RIB is ideal for patrol, shipboard operations, search and rescue (SAR), maritime interdiction, force protection, VBSS, and explosive ordinance and counter mine measures. Built to exacting military standards, the 38' RIBCRAFT 11 Meter RIB features an internal composite structure, multiple configurations, self draining deck, and mechanically fastened polyurethane tube. This is the standard US Navy 11 Meter RIB and US Navy 11 Meter Expeditionary RIB.

Contact Us
Equipment

RIBCRAFT 11 Meter Specs

LOA: 38'2"
Beam: 12'
Tube Diameter: 22”
LOD: 30’ 7”
Internal Beam: 7’ 11”
Maximum HP: 800

11 Meter Standard Equipment:

  • Center console with front bench seat and two side by side pod seats or leaning post
  • 350 gallon fuel capacity
  • Hydraulic steering
  • 1670 dtx Hypalon tube with nine (9) chambers
  • Pressure relief valves
  • Bow storage locker
  • Stainless steel bow eye
  • External lifelines
  • Heavy duty rubstrake
  • Stainless steel bow cleat
  • Stainless steel transom tie down eyes
  • Battery with retainer and switch (2)
  • Electrical panel
  • Navigation lights
  • Compass
  • Electric bilge pump (3)
  • Aft sump
  • Industrial grade non-skid deck

11 Meter Optional Equipment: (Partial List)

  • Oversized console with inside storage compartment or marine head
  • Windshield with stainless steel grab rail
  • Additional pod seat(s) with upholstered backrest and grab handle
  • Custom console enclosures and cabin configurations
  • Aft bench seat
  • Custom seating configurations
  • Antenna arch
  • Folding dive ladder
  • Fore and aft tow posts
  • Transom bollards
  • T-top
  • Extended canopy top with dive ladders
  • Crash rail
  • Stainless steel lifting points
  • Dive tank storage
  • Keelguard
  • Reinforced tube at bow
  • Boarding wear patches
  • Tube grab handles
  • Paddle/hook retainers
  • Custom Hypalon® lettering
  • Strobe and safety lights
  • Electronics packages
  • Complete inboard and outboard engine packages
  • USCG Certified Tour and Passenger-for-hire packages
  • Various hull and tube colors

With accessory choices, console and seating configurations, propulsion options and a variety of navigation and communication equipment, the 11.0 can be personalized to the mission. All specifications, equipment, and options are subject to change without notice.
